Through the years of consistently pioneering
the most competitive sheet and roll stock vacuum formers available,
Our engineering department has been a leader in cutting
edge technology for 25 years, offering our customers the very
best solutions for their equipment needs. The Model C Class
vacuum formers series supports a futuristic modular post
and beam frame design reducing our labor and material cost
while offering your company the same equipment capacities and
industrial standards found in A and E Class vacuum formers offering your company a savings of 50% in equipment cost and 20%
in shipping cost
Newest vacuum forming equipment systems This equipment series offers
industrial heavy gauge vacuum forming with some big incentives
Utilizing high-tech, modular
components, this equipment offers a new concept in equipment frame
design completely operational and ready
for production, or partially dissembled this model offers a
substantial savings in shipping and overall equipment costs.
Components such as heater panel, main control box and vacuum pump
are wired at the factory, requiring just a few bolts to mount to
to assembled structural frame assembly.
Model C Class
48'' x 96'' (122 x 244cm) - Vacuum forming of large of
plastic components this equipment offers industrial
capabilities at entry level pricing
Regular Price $23,000 - *Prices subject to change

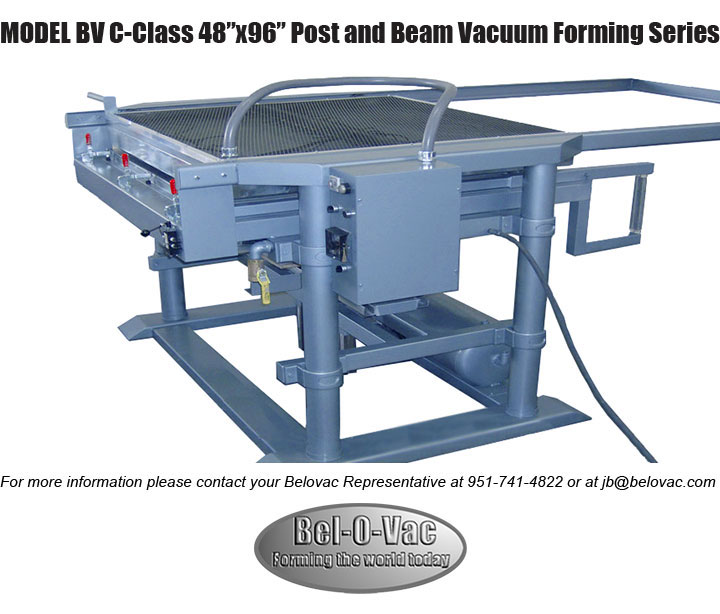

Model BV C-Class 48x96 (122 x 244cm) Heavy Guage Vacuum Former
Equipment Specifications:
Sheet size 48x96 (122 x 244cm) (Custom sizes available at request)
Depth of draw 22 inches
Fully adjustable material clamping
Tooling Table: 3 1/4" (8cm) Pneumatic drive cylinder 300lb (136kg) seal pressure with adjustable slotted track for rapid tool mounting
Solid state programmable heat timing unit, coupled with programmable percentage control unit
Heater Panel: 63,000 watts infared radiant panel, with size-down option

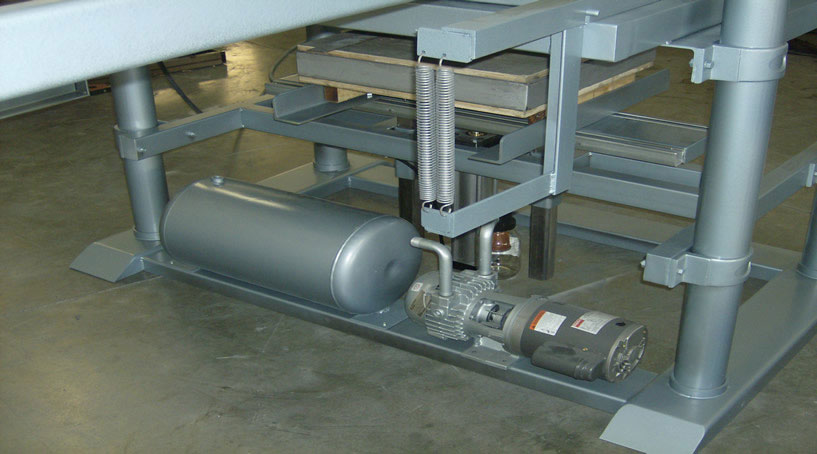

Vacuum Pump: High volume, Hi-vacuum pump, Onboard 60 Gallon surge tank
Construction: Post and Beam, Modular Frame System
Recommended for plastics ABS - PVC - PET - Poly styrene- kydex - Poly propylene
Plastic gauges up to 1/4" (.64cm)
Electric Requirements:
Power requirement: 220 three phase 145 amps

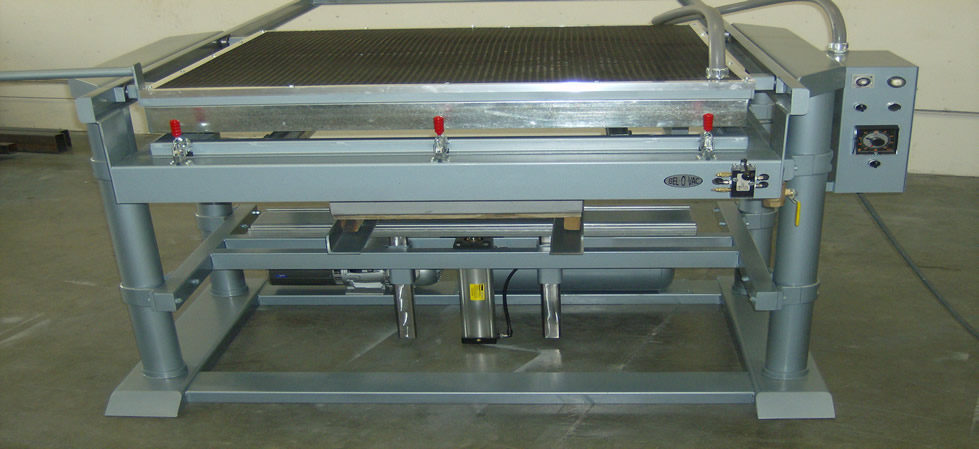

C-Class Series 48x96 (122 x 244cm) Vacuum Former
Optional: Features - Upper Tooling Table, 7-Zone PLC, Rear Rollholder

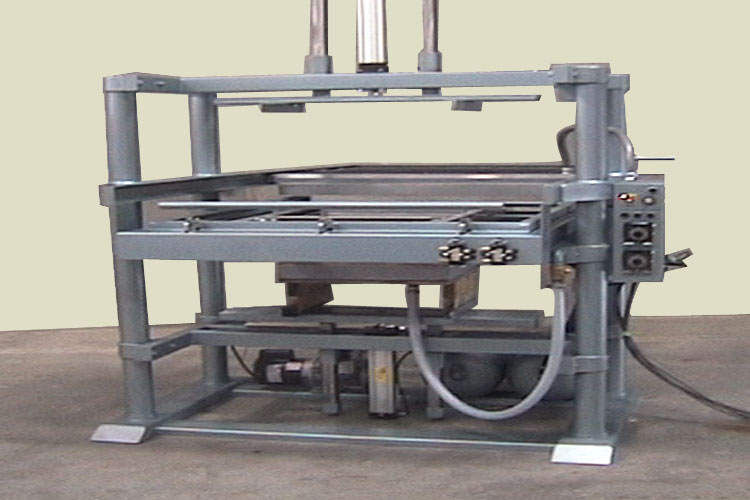

Available option : Overheat Assist Upper Tooling Table

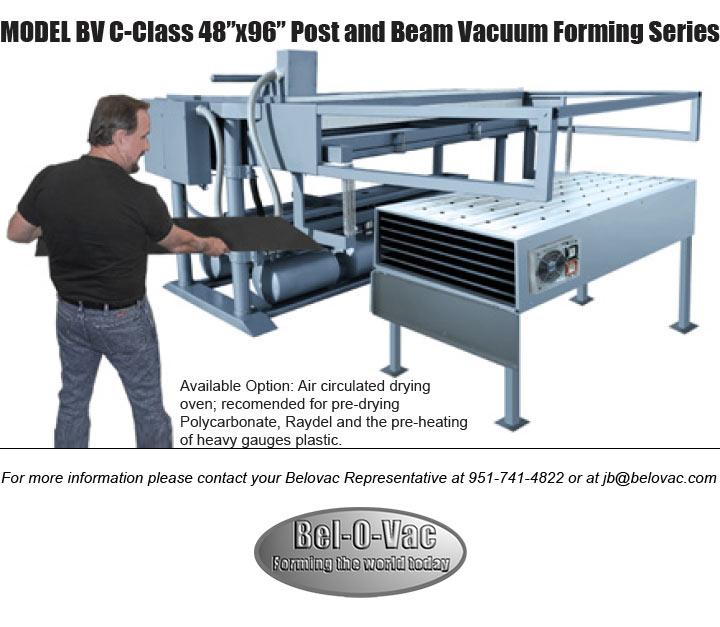

Available option: Air circulated drying oven; Recomended for pre-drying Polycarbonate, Raydel and the preheating of heavy gauges plastic.

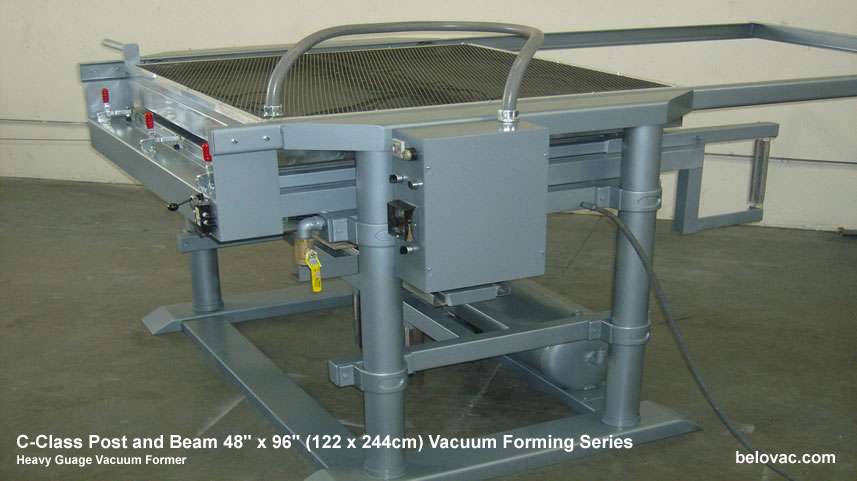

Model
BV C Class Post and Beam 48'' x 96" (122 x 244cm) Vacuum
Forming Series
