Belovac’s Newest BV C Class Vacuum Forming Machines

Now offering PLC or standard controllers newly design for ease of operation and reliability. Shipped completely operational, set up to your specifications for production. Offering a full range of vacuum forming capabilities .... designed for entry level, and production-minded consumers. Featuring newly designed post and beam engineered technology, saving you 40% cost ....on local and world wide shipping.



Sale Price $12,900.00
Contact Your Belovac
Rep for Current Pricing

Industries best selling
vacuum forming machine!
Financing Application


C-Class Vacuum Forming Machines Financing Calculator
Loan Term C-Class 24x48 / $7,900 C-Class 48x48 / $12,900 C-Class 48x96 / $18,900
5yr $162/mo $265/mo $389/mo
4yr $194/mo $317/mo $465/mo
3yr $250/mo $408/mo $597/mo
To consult with a Belovac representative call ☎ 951-741-4822 to discuss your specific project.
Leasing & financing options available upon approved credit, inquire today!


Download Brochure

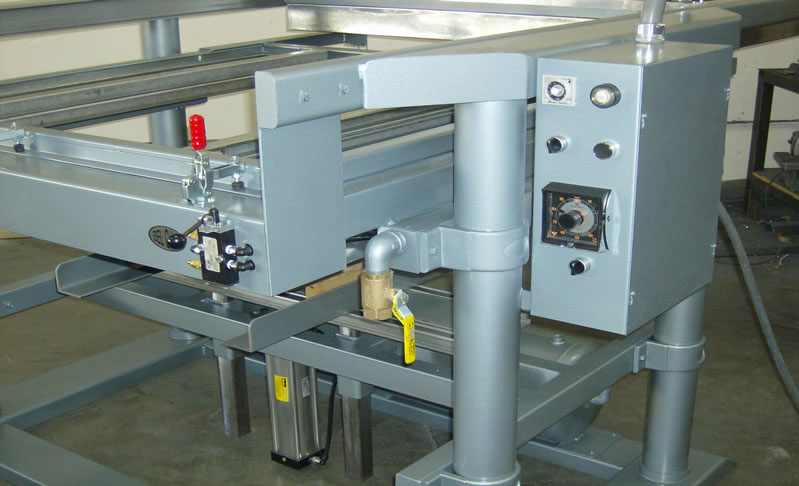

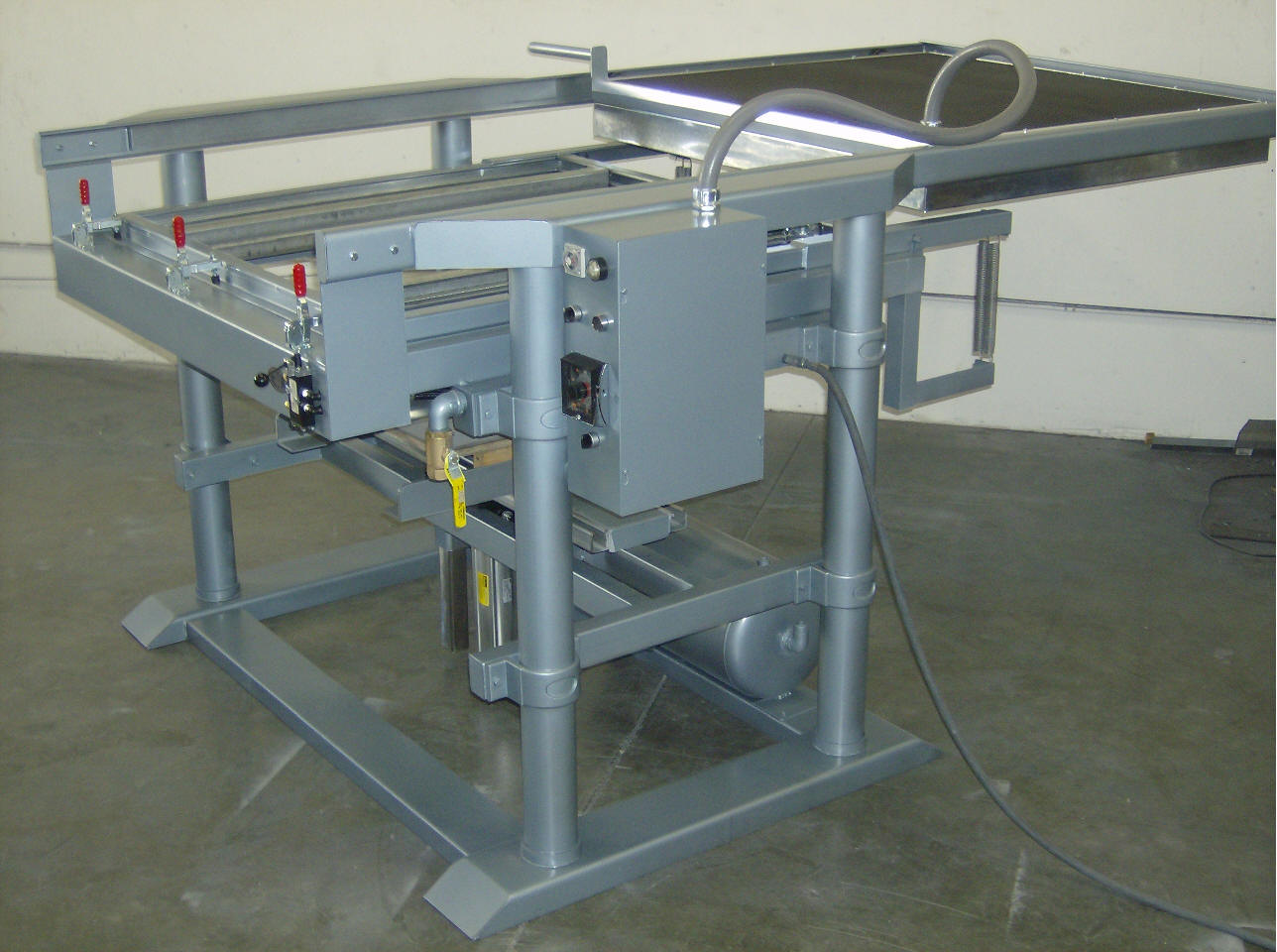

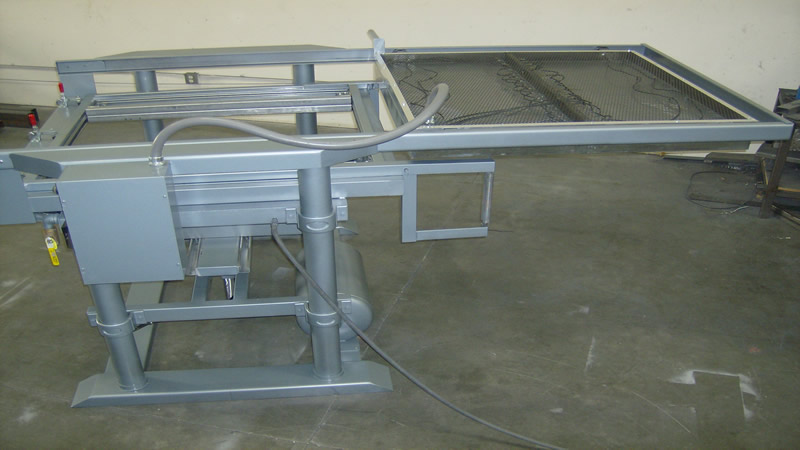

Model BV C-Class 48x48 (122 x 122cm) Heavy Guage Vacuum Former


Equipment Specifications:

  • Sheet size 48x48 (Custom sizes available at request)
  • Depth of draw 22 inches
  • Fully adjustable material clamping
  • Tooling table: 3 1/4" (8cm) Pneumatic drive cylinder 300lb (136kg) seal pressure with adjustable slotted track for rapid tool mounting
  • Solid state programmable heat timing unit, coupled with programmable percentage control unit
  • Heater Panel: 32,000 watts infared radiant panel, with size-down option

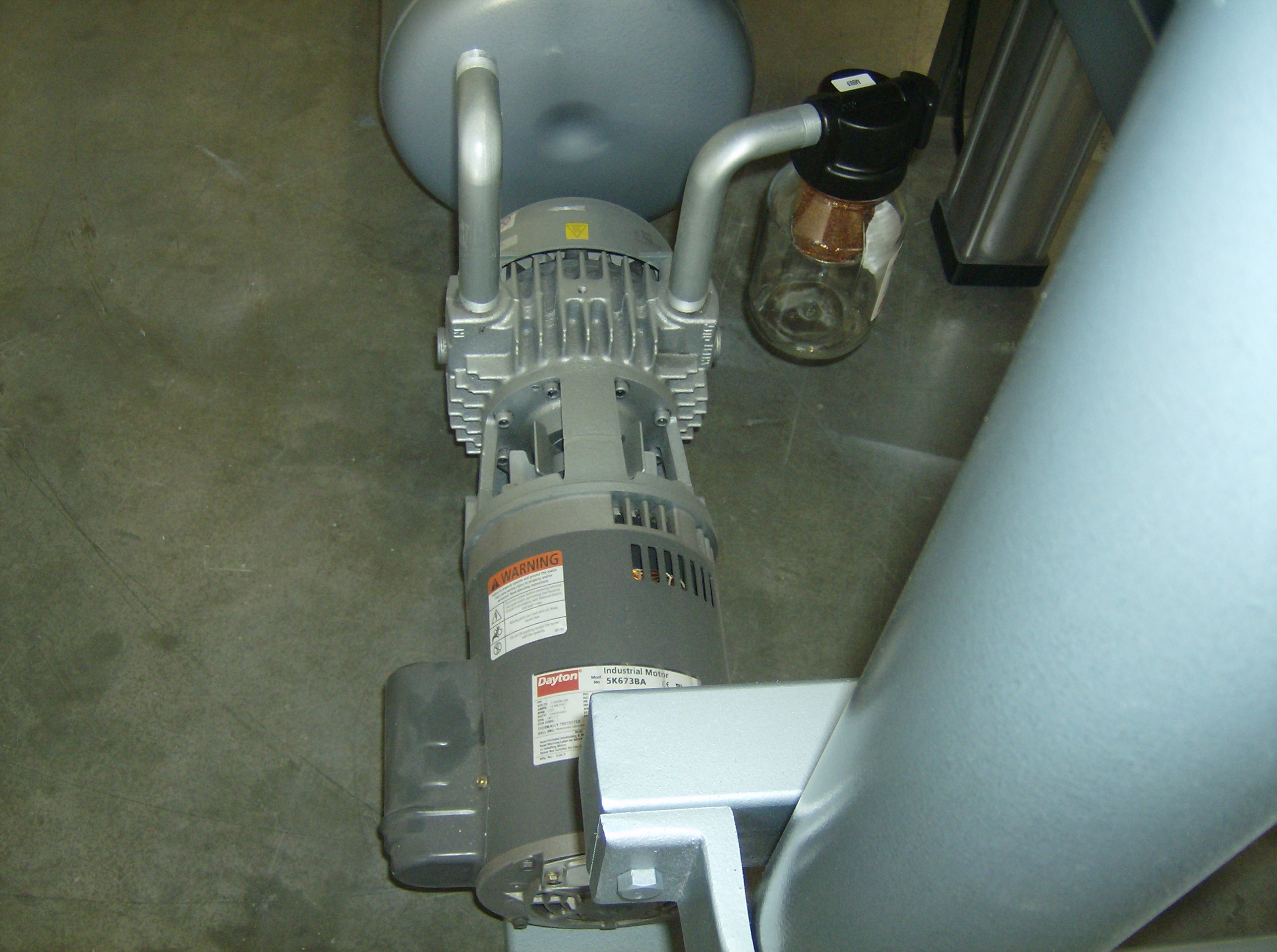

  • Vacuum Pump: High volume, Hi-vacuum pump, Onboard 40 Gallon surge tank
  • Construction: Post and Beam, Modular Frame System

  • Recommended for plastics  ABS - PVC - PET - Poly styrene- kydex - Poly propylene
  • Plastic gauges up to 1/4" (.64cm)

  • Electric Requirements:
  • Power requirement: 220 three phase 75 amps

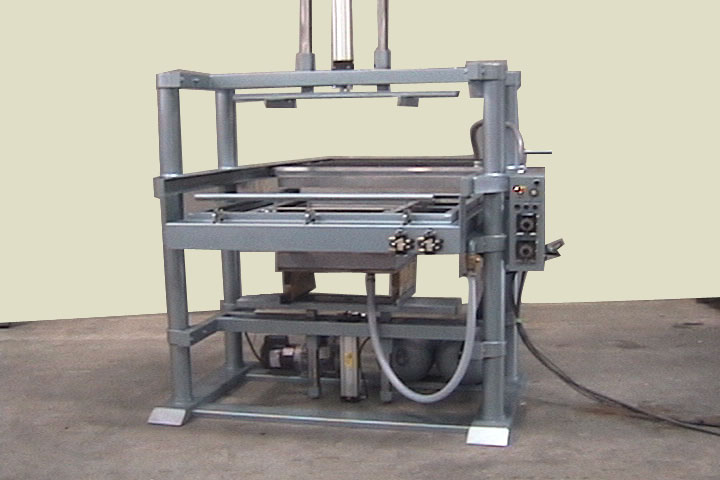

Optional: Features - Upper Tooling Table, 7-Zone PLC, Rear Rollholder
Products Formed with Belovac Machines
Deep Female Tub
Shipping Pallet
060 ABS Skin formed on Styrofoam blank
High Profile Plastic Industrial Parts
Heavy Guage High Profile Forms

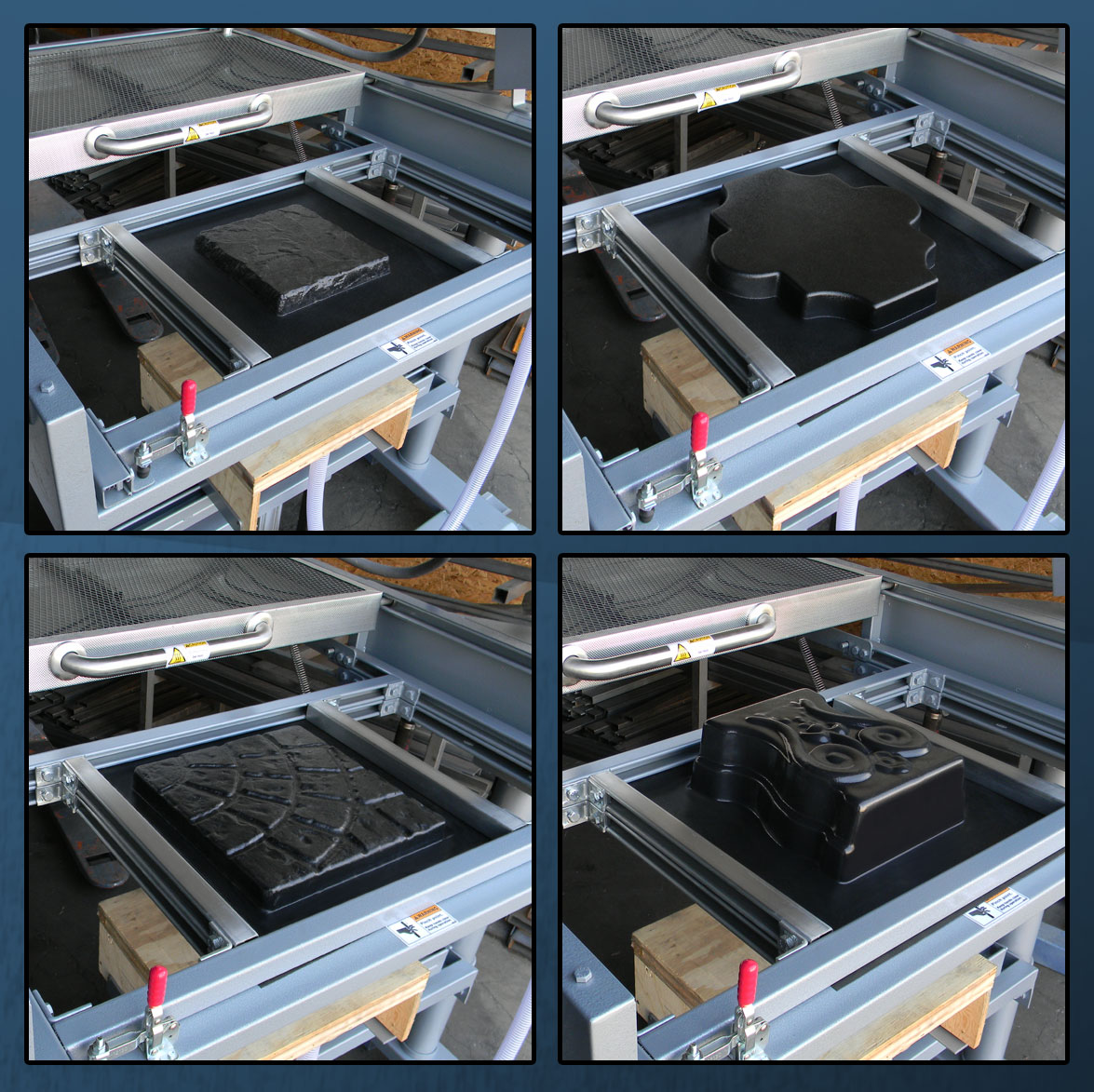

Cement Precast Plastic Molds
