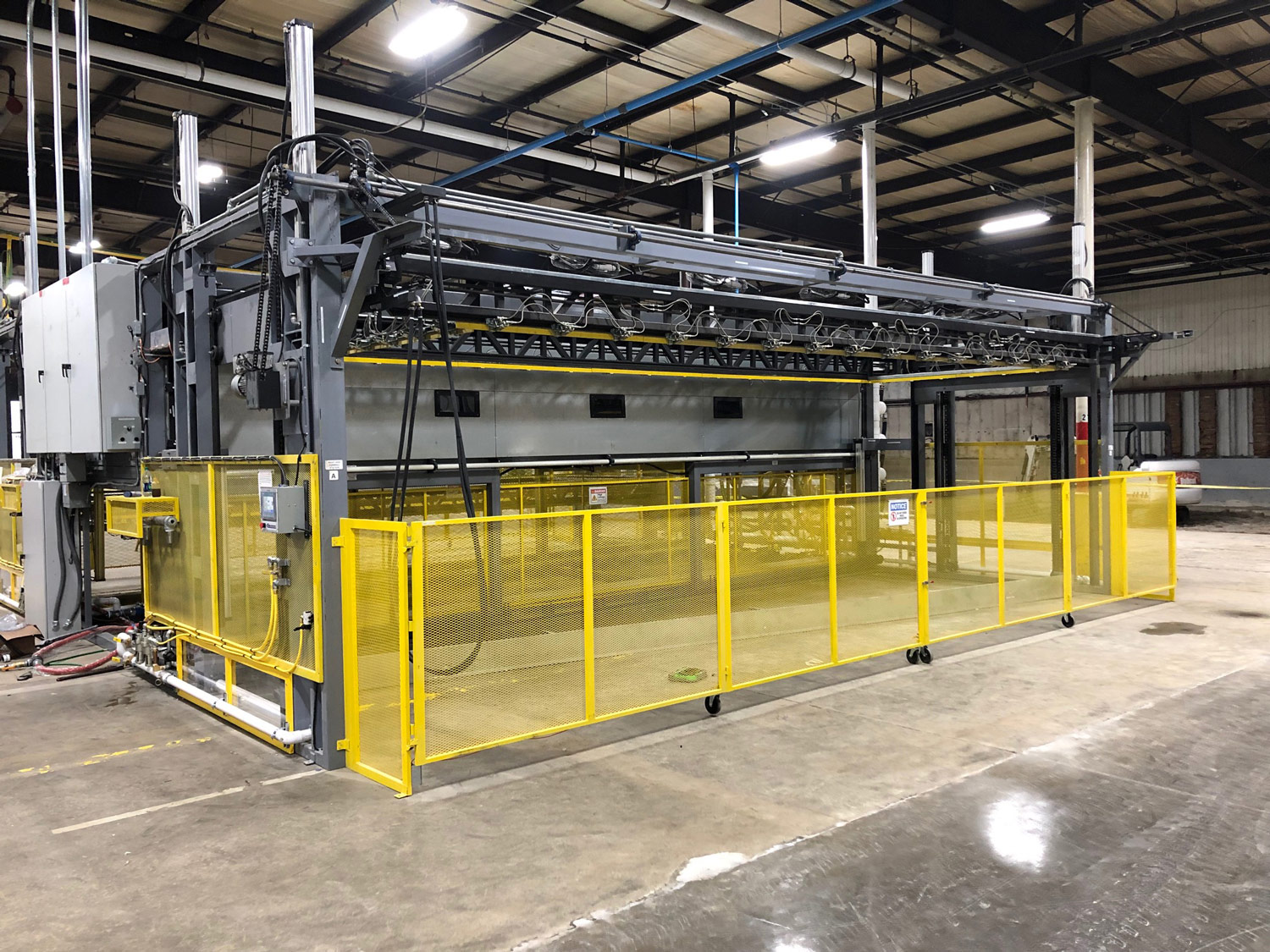

Model BV E Class 10' x 10' (305 x 305cm) Spa and Tub Equipment

Belovac has been a leading manufacture in the industry for twenty five years defining equipment technology the way it should be durable and straight forward. Offering a simplistic approach to extreme depths. of draw this equipment is conservatively engineered for the carefree forming of large component.

Model BV E Class 10' x 10' (305 x 305cm) Spa and Tub Equipment
Shuttle heater panel 140,000 watt heater bank PLC controlled 10 zones touch screen heat management designed for one person operation, Hand rolled into forming area.

Equipment Specifications:

  • Sheet size 120" x 120" (Custom sizes available at request)
  • Depth of draw 42 inches
  • Fully Pnuematic adjustable material clamping
  • Tooling Table: 5" bore dual cylinder Spur and Rack Tooling Lift
  • PLC Touch Screen 14-Zone Independant Heat Control with programmable Heat Time indicator
  • Heater Panel: 200,000 watts infared radiant panel, with size-down option
  • Vacuum Pump: 3HP High volume, Hi-vacuum pump, Onboard 200 Gallon surge tank
  • Construction: Heavy wall 5" tubular frame

  • Recommended for plastics  ABS - PVC - PET - Poly styrene- kydex - Poly propylene
  • Plastic gauges up to 1/4" (.64cm)

  • Electric Requirements:
  • Power requirement: 240 - 480 three phase
Dual Station Spa Machine
spa machine 6

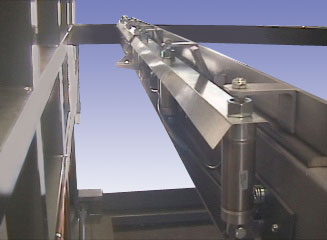

A Pneumatic clamping system that offers full adjustments to your specific sheet size. Additional frames can be purchased for quick size changes
spa machine 6
Manual Deep Draw Heavy Gage

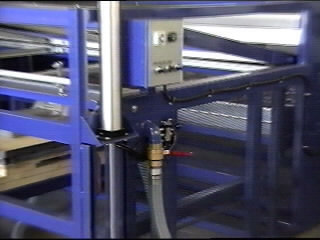

Operator control station- table/ vac / timing Operator opening clamping bar
Tooling table dual cylinder spur and rack guided 32'' (81cm) depth of draw
image image
Vacuum system  80 gal (303L) -150 gal (568L) - 200 gal (757L) surge tank fit with 1/2/3 HP vacuum pump Pneumatic adjustable material clamping
image image
