When you need the last word in excellence!

This equipment is engineered for the production of preprinted polycarbonate and similar difficult plastic

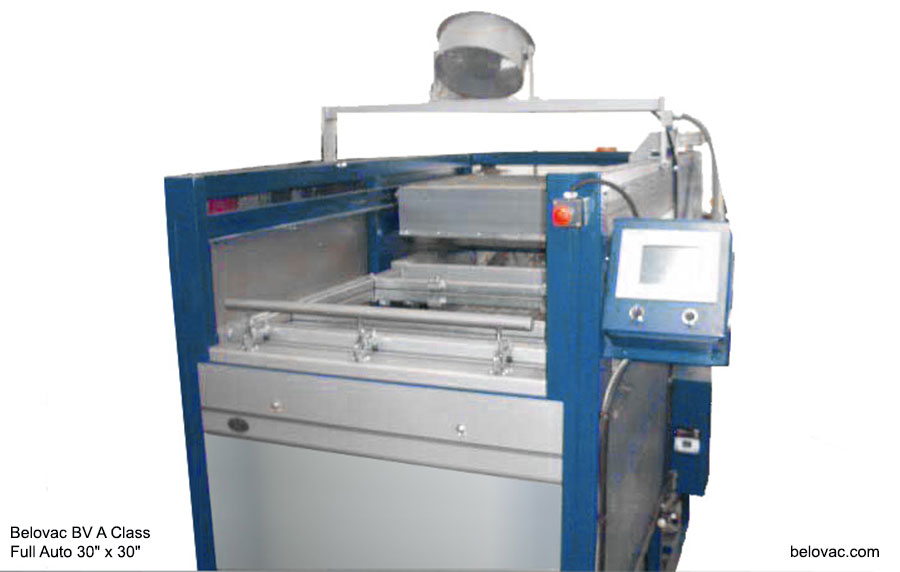

Model BV A Class Full Auto 30'' x 30'' (76 x 76cm) Over Heater Forming
When it comes to specialized equipment for the precise forming of preprinted materials and difficult thin polycarbonate, the model BV A Class series will meet your needs.

Offering ? Dual heat with independent oven retraction, allowing over heat forming need for split second timing ? PLC sequence controlled fully automatic machine ? Ceramic heater panels upper and lower 14 zones independent percentage control ? Calipered registration clamping plates for exact alignment ? Thermally controlled heated tooling plate recommended for Polycarbonate

Material recommendations All thermoplastic up to 3/8 in gauge
Full auto PLC touch screen cycle timing and heat PLC  touch screen  heat management
image image
Heated universal tooling plate temperature controlled Hi surge vacuum system 30 gal (114L)
image image
14 zones of energy efficient ceramic upper and lower heat Salamander inferred
image image

Additional options include:

  • PLC full auto cycling with touch screen with overheating capability
  • PLC controlled touch screen heat managing system
  • 14 zones of  independently controlled upper and lower ceramic heaters
  • heated vacuum box universal tool mounting , temperature controlled
  • Hi vacuum pump with 30 gal (114L) surge reservoir
  • Fully adjustable material frame adaptable to registration plates
  • Sheet Registration aliment plates and pins with adjustable calipers for pre-printed plastics

All A Class model can be custom engineered to your tooling size requirements

To discuss your specific project call JB @ 951 741-4822
